BETAFPV LiteRadio 2 (Mode2/Frsky)




After the latest round of beta test, LiteRadio 2 is back to the market with the huge improvements based on the original version.

  • Supports Frsky protocol, easily change Frsky D8, Frsky D16 FCC and Frsky D16 LBT mode (The default version is Frsky D16 FCC)
  • Built-in charging module, support USB charging
  • Adopted the rubber coat and add weight, makes it more ergonomic
  • Add vibration motor, provide a vibrating prompt
  • Redesign the power button, make it crystal clear and better for the LED indication

Special thanks for the review of UAVfutures, it is a great help for fans to make the right value choices.


  • Designed for FPV racing starters, and supports Bayang protocol and Frsky protocol (D16/ D8)
  • LiteRadio 2 is powered by OpenTX firmware. Totally 8 channels and has a hobby grade gimbal.
  • This radio tansmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulator like EREADRONE
  • The trainer function is available for this LiteRadio 2 transmitter. It is useful for FPV racing student in training
  • LiteRadio 2 transmitter runs the OpenTX 2.2.4 firmware. OpenTX comes with a computer-based graphical user interface, OpenTX Companion. Pilots could use OpenTX Companion is trim the gimbal central value
  • With the hobby grade gimbal and adopted the rubber coat, makes it more ergonomic


  • Item: LiteRadio 2
  • Frequency Range: 2.4G (2403MHz-2447MHz)
  • 2.4G System: NRF24L01 or CC2500
  • Channel: 8
  • System: Bayang Protocol / Frsky Protocol
  • Power: ≤80mw
  • Model Type: Multi-rotor
  • Support USB Charging
  • Support FPV Simulator Connected
  • Output: PPM, support Student Radio Mode
  • LED Light: Green-Power On / Red-Warning / Blue-Normal

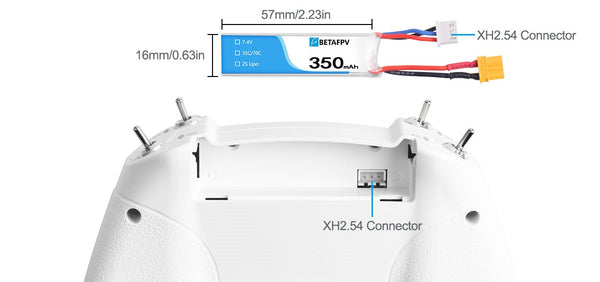

  • Battery: 350mAh 2S Battery
  • Weight: 227.4g (with battery)

วิธีการเปลี่ยนโปรโตคอล (D16/D8 Version)

วิธีการเปลี่ยนโปรโตคอล FrSky (FCC D16, EU D16 หรือ D8) อยากแรกต้องปิดวิทยุก่อน หลังจากนั้นกดปุ่ม bind ค้างไว้แล้วเปิดเครื่อง จากนั้นไฟจะกระพริบแสดงโปรโตคอลที่ใช้อยู่ ทำซ้ำวนไปเพื่อเปลี่ยนโปรโตคอลครับ
สถานะไฟ LED Protocol Version
กระพริบครั้งเดียว Frsky D16 FCC
กระพริบ 2 ครั้ง Frsky D16 LBT
กระพริบ 3 ครั้ง Frsky D8

คู่มือ LiteRadio 2

Manual for LiteRadio 2 Radio Transmitter
LiteRadio Configuration – OpenTX Companion
Setup E.G. #1 – Trim the Gimbal Central Value
Watch the following video to learn about how to use your LiteRadio 2

โครงสร้างของ LiteRadio 2


  • 1 * LiteRadio 2 Radio Transmitter
  • 1 * 350mAh 2S Battery
